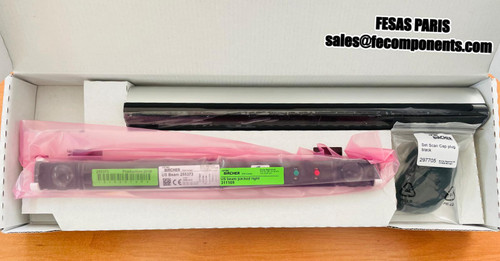

BIRCHER UniScan Active InfraRed Presence Sensor - 260012
- Availability:
- Usually ships in 24 hours
- Minimum Purchase:
- 1 unit
Description
TECHNICAL DATA
Technology : Active Infrared (triangulation)
Wavelength : 880nm
Number of IR beams : 8, can be switched separately, synchronized
Dimensions of an IR beam : 30 mm x 60 mm at 2.2m mounting height
Detecting zone,dimensions : 471 mm x 60 mm at 2.2m mounting height
Response time : <50ms
Mounting height : 1.7 - 3.0m, depending on the background
Angle setting : 2° - 14°, set in increments of 3°
Installation length in the profile : 30mm incl. mounting chips
Power supply : 15 - 37 VDC/ 15-26VAC, AC independently
Power consumption : Max. 3.3 W, 0.17W per beam
Making current : < 500mA
Test input : 4 versions (high/low active, pull up/down)
Output : Change over relay, max. 40VDC/ 40VAC , 1A
Hold intervals : 0 - 10s (adjustable)
Operating temperature : -20°C bis 60°C
Type de protection : IP54 suitable
Remote control range : 5m
No. of devices that can be interconnected : 4 units, synchronized
Application : Stationary / moving presence detection
Function safety level : SIL2
