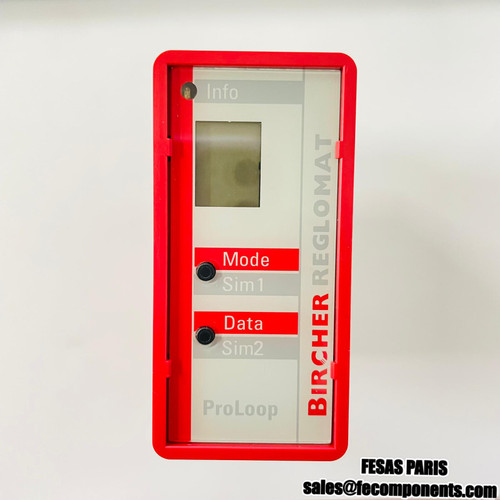

BIRCHER ProLoop11 PRLO1.R2.S.230VAC Loop Detector For 1 Loop - 224482
(No reviews yet)
Write a Review
__62362.1638194704.jpg?c=1 "BIRCHER ProLoop11 PRLO1.R2.S.230VAC Loop Detector For 1 Loop - 224482")
- Availability:
- Usually ships in 24 hours
- Minimum Purchase:
- 1 unit
__62362.1638194704.jpg?c=1?imbypass=on "BIRCHER ProLoop11 PRLO1.R2.S.230VAC Loop Detector For 1 Loop - 224482")
Description
Technical Data
Supply Voltage : 230 VAC -15% to +10% 16mA
Power Consumption : 24V 1.2 VA
Loop Inductance : max. 40-1000 µH, ideally 80 à 300 µH
Loop Connection Wire : max. 200 m 1,5mm² min. twisted 20x/m
Loop Resistance : <8 Ohm with connection wire
Output Relay (loop) : 240 VAC/2 A AC1
Dimensions : 36 x 74 x 88 mm (w x h x d)
Housing Mounting : Mounting rail installation via 11-pin base BSF-11
Connection Type : Screw terminals base BSF-11
Protection class : IP 20
Operating Temperature : -20°C to +60°C
Stockage Temperature : -40°C to +70°C
Air Humidity : <95% non-codensation
