Bircher

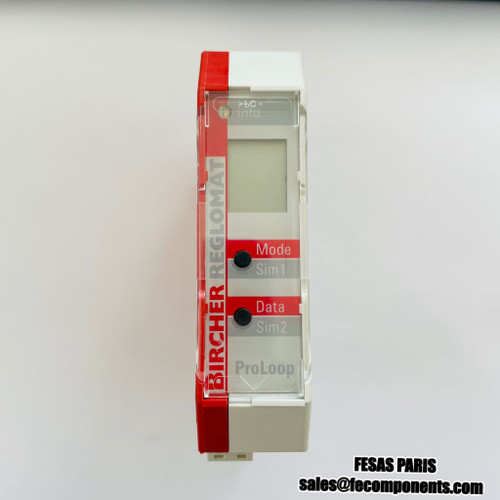

BIRCHER PRLO1.R2.24ACDC Loop Detector For 1 Loop - 219948

(No reviews yet) Write a Review
Availability:
Usually ships in 24 hours
Minimum Purchase:
1 unit
156,00€ Inc. Taxes
130,00€ Ex. Taxes
Request Quote

Out of stock

Description

Technical Data

Supply Voltage : 24 VAC - 20% to +10% 84mA
                           24 VDC - 10% to +20% 84mA
                           94-240 VAC +/- 10% 50/60 Hz 23-12mA

Power Consumption : Max. 2 VA

Loop Inductance : max. 40-1000µH, ideally 80-300µH

Loop Connection wiring : max. 200m 1.5mm²
                                           Minimum 20x/m

Loop Resistance : < 8ohm with connection wire

Output Relay (loop) : 240 VAC /2 A AC 1

Output Relay (alarm) : 60 VAC, 0.3 A, AC 1

Dimension : 22.5 x 94 x 88mm (W x H x D)

Housing Mounting : Direct DIN rail mounting

Connection Type : Plug-in terminals

Protection class : IP 30

Operating Temperature : -20°C to +60°C

Storage Temperature : -40°C to +70°C

Air Humidity : <95% non-condensing
