Bircher

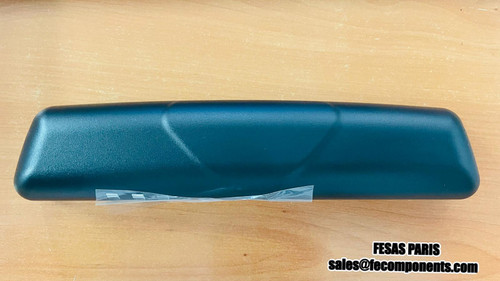

BIRCHER PrimeTec A ES Microwave Motion and AIR Presense Detector - 260501/A

(No reviews yet) Write a Review
Availability:
Usually ships in 24 hours
Minimum Purchase:
1 unit
512,40€ Inc. Taxes
427,00€ Ex. Taxes
Request Quote

Description

Technical Data

Technology : Active Infrared (wavelength : 800nm), radar double field module - PrimeTec (24.125GHz)

Number of IR spots : 36

IR spot dimensons : 3 cm x 3 cm (at 2.2m mounting height)

Respons Time : <200ms

Mounitng Height : Up to 3.5 m acc. to DIN 18650, otherwise up to 4m

Angle setting of IR spots : 5° - 7° continuously adjustable

Electric power supply : < 120mA @ 11.5 - 32 VDC

Power consumption : < 4 watts

Making current : < 240mA

Exit (AIR/Radar) : Optocoupler (50 VDC, 50mA)

Protection type : Suitable for use acc. to IP54

EMC/RTTE : Acc. to EMC and RTTE directives

Remote control range : 3m

Operating temperature : -20°C to 60°C

Dimension : 260 x 60 x 48.5mm (LxWxD)

Weight : 250g

Life Cycle : 20years
