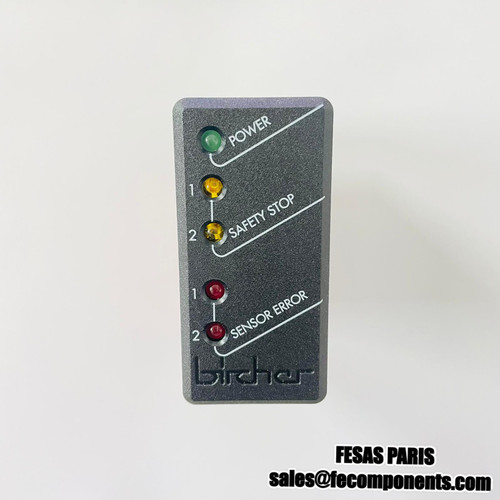

BIRCHER ESR11-230AC-GB Switching Unit Relay - 211771
(No reviews yet)
Write a Review
__79230.1638194698.jpg?c=1 "BIRCHER ESR11-230AC-GB Switching Unit Relay - 211771")
- Availability:
- Usually ships in 24 hours
- Minimum Purchase:
- 1 unit
__79230.1638194698.jpg?c=1?imbypass=on "BIRCHER ESR11-230AC-GB Switching Unit Relay - 211771")
Description
Technical Data
Housing : Type M3, Material orange Noryl
Isolation Class : IP30 (IEC 529)
Weight : max. 250g (depending on type)
Power Supply : 230VAC (+10%/-20%) with isolating transformer
Frequency : 50/60Hz (45 to 66Hz)
Power Consumption : max. 3 VA
Duty Cycle : 100%
Sensor Input : max. allowable voltage 15VDC
max. allowable current 5mA
Output Relay/Error Indication Relay
Switching Capacity : 250VAC/6A resistive
Contact Material : Hard Silver
Operating Life : Mechanical 30 million operations
Electrical 80'000 switchings at 250 VAC/6A resistive
Fuse Protection : 6A Slow-Blow
Indicators (LED 5mm)
Operation : Green
Safety Function : Yellow
Sensor Error : Red
Reaction Time : <70ms
Temperature Range
Operation : -20°C to +50°C
Storage : -20°C to +80°C
Humidity : max.80% relative
