Bircher

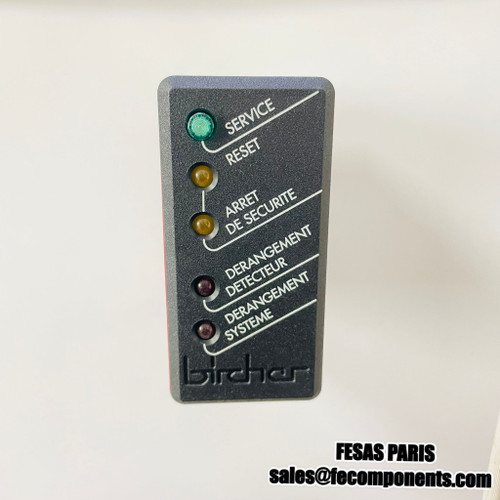

BIRCHER ESR31-115AC-F Switching Unit Relay - 211853

(No reviews yet) Write a Review
Availability:
Usually ships in 24 hours
Minimum Purchase:
1 unit
288,00€ Inc. Taxes
240,00€ Ex. Taxes

Description

Technical Data

Housing : Type M3, Material orange Noryl

Isolation Class : IP30 (IEC 529)

Weight : max. 250g (depending on type)

Frequency : 50/60Hz (45 to 66Hz)

Power Consumption : max. 5 VA

Duty Cycle : 100%

Sensor Input : max. allowable voltage 15VDC
                       max. allowable current 5mA

Signal Output Relay
Switching Capacity : 2A/250 VAC 1(ohm)

Contact Material : Hard Silver

Operating Life : Mechanical 50 million switchings
                           Electrical 80'000 switchings at 2A/250 VAC 1

Fuse Protection : 2A Slow

Error Indication Relay
Switching Capacity : 2A/250 VAC 1(ohm)

Fuse Protection : 2A Slow

Indicators (LED 5mm)
Operation : Green (Type ESR-31 built into reset button)

Safety Stop : Yellow

Sensor Error : Red

System Error : Red

Reaction Time : <70ms

Temperature Range
Operation : -20°C to +50°C

Storage : -20°C to +80°C

Humidity : max.80% relative
