Description
Autres Prix : Si vous avez besoin de plus de quantités et bénéficier d'un meilleur tarif,
View AllClose
Contactez-Nous : sales@fecomponents.com
Other Prices: If you need more quantities and get a better price,
Contact Us: sales@fecomponents.com
Description
Condition : New
Pack of 10Pcs
Manufacturer : Fairchild Semiconductor

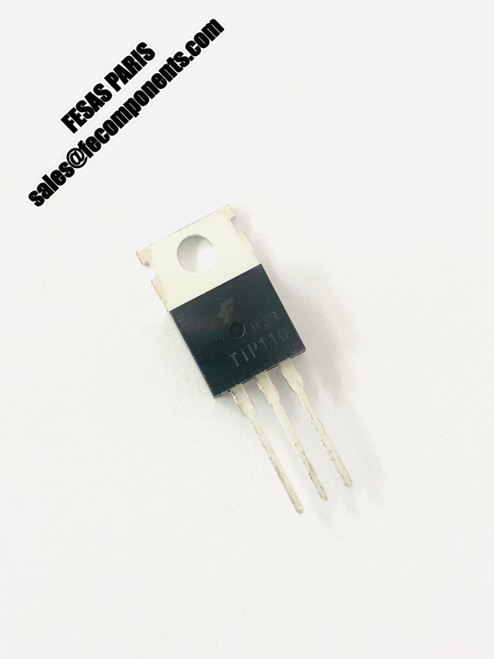

P/N : TIP110
Product Category: Darlington Transistors
Configuration: Single
Transistor Polarity: NPN
Collector- Emitter Voltage VCEO Max: 60 V
Emitter- Base Voltage VEBO: 5 V
Collector- Base Voltage VCBO: 60 V
Maximum DC Collector Current: 2 A
Maximum Collector Cut-off Current: 1000 uA
Mounting Style: Through Hole
Package/Case: TO-220AB
Minimum Operating Temperature: - 65 C
Maximum Operating Temperature: + 150 C
Series: TIP110
Height: 9.4 mm
Length: 10.67 mm
Width: 4.83 mm
Brand: Fairchild Semiconductor
DC Collector/Base Gain hFE Min: 1000 at 1 A at 4 V, 500 at 2 A at 4 V
Product Type: Darlington Transistors
