Description
Autres Prix : Si vous avez besoin de plus de quantités et bénéficier d'un meilleur tarif
Description
Contactez-Nous : sales@fecomponents.com
Other Prices : If you need more quantities and get a better price
Contact Us: sales@fecomponents.com
Condition : New
Pack of 3Pcs
Manufacturer : Harris Semiconductor

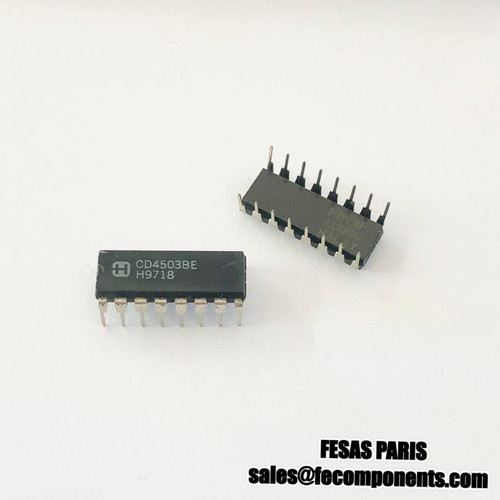

P/N : CD4503BE
Date Code : 9718
Product Category: Buffers & Line Drivers
Number of Input Lines: 6 Input
Number of Output Lines: 6 Output
Polarity: Non-Inverting
High Level Output Current: - 8.2 mA
Low Level Output Current: 19.2 mA
Quiescent Current: 40 nA
Supply Voltage - Max: 18 V
Supply Voltage - Min: 3 V
Operating Supply Current: 60 uA
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 125 C
Mounting Style: Through Hole
Package/Case: PDIP-16
Packaging: Tube
Function: Buffer/Line Driver
Height: 4.57 mm
Length: 19.3 mm
Operating Temperature Range: - 55 C to + 125 C
Output Type: 3-State
Series: CD4503B
Technology: CMOS
Width: 6.35 mm
Logic Family: CD4000
Logic Type: CMOS
Number of Channels: 5
Supply Current - Max: 20 uA
Input Signal Type: Single-Ended
Operating Supply Voltage: 3 V to 18 V
Pd - Power Dissipation: 100 mW
Product Type: Buffers & Line Drivers
Propagation Delay Time: 150 ns at 5 V, 70 ns at 10 V, 50 ns at 15 V
Subcategory: Logic ICs
Unit Weight: 1 g
