Bircher

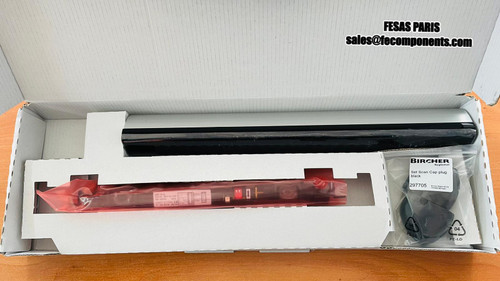

BIRCHER TopScan G3 1/31 Reflection Light Beam - 289835

(No reviews yet) Write a Review
Availability:
Usually ships in 24 hours
Minimum Purchase:
1 unit
388,80€ Inc. Taxes
324,00€ Ex. Taxes

Description

Detection area : 100–2500 mm (3.94"–98.4") For stationary mode
                          500–2500 mm (19.7"– 98.4") For moving mode

Scanning range setting : Mech.adjustment wheel 1500–2500 mm (59.1"– 98.4")

Temperature dependence –20°C (–4 ° F): –10%    +60°C (+140° F): +10%

Black/White difference max. 20% (White: Larger scanning range / Black: Smaller scanning range)


Detection area Approx. 75 mm (2.95") diameter

Type of light IRED

Operating voltage 17–30 V DC/ 18–28 V AC

Current consumption < 110 mA

Signal output Relay, changeover contact
                        Max. switching voltage 48V AC/DC
                        Max. switching current 0.5A AC/DC
                        Max. switching capacity 55VA/24W

Response time on detection Approx. 30 ms

Drop-out time after detection Max. 150 ms Max. 2 s

Response time with test signal Max. 500 ms

Test input With +UB = 17–30 V DC

Operating mode Moving / stationary

Function indication Red LED

Connection type Plug-in screw terminal

Protection class Suitable for use in acc. with IP54

Housing material Aluminium/ABS

Front cover PC (black)

Distance between optical units 150 mm (5.91")

Operating temperature –20°C to +60°C (–4° F to +140° F)

Storage temperature –40°C to +80°C (–40° F to +176° F)

Weight 45 g (1.59 oz.)

Sensor dimensions 198.5 x 31 x 20 mm (7.8" x 1.2" x 0.78")

Housing colour Silver
