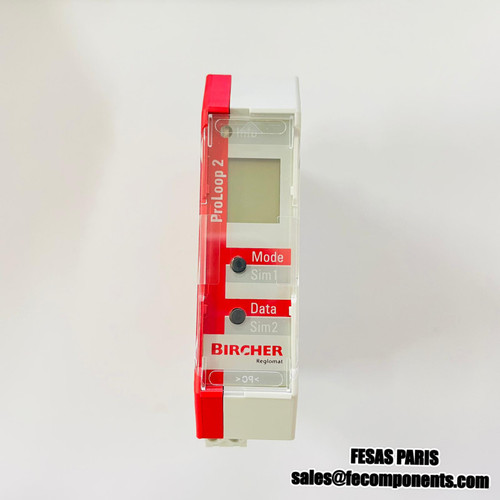

BIRCHER ProLoop2 1.A.LVAC Loop Detector For 1 Loop - 262599

(No reviews yet) Write a Review
Availability:
Usually ships in 24 hours
Minimum Purchase:
1 unit
252,00€ Inc. Taxes
210,00€ Ex. Taxes
Request Quote

Description

Loop Detector For Industrial Doors And Gates, Car Parks And Parking Bollards


Electrical data
Supply voltage / Power consumption : 24 V AC -20 % to +10 %, max. 2 VA
                                                              24 V DC -10 % to +20 %, max. 1.5 W
                                                              100-240 VAC ±10%, 50/60 Hz, max. 2.9 VA

Loop Inductance : max. 20 to 1000 µH
                              ideally 80 to 300µH

Loop Connection wiring : At 20-40µH : max. 100 m at 1.5mm²
                                          At >40µH: max. 200 m with 1.5m²
                                          min. twisted 20x/m

Loop resistance : < 8Ohm with connection wire

Output relays (loop) : max. 240 V AC; 2 A / 30 VDC; 1A; AC-1

Output relay (alarm) : max. 40 VACDC; 0.3A; AC-1

Dimensions : 22.5 x 94 x 88 mm (B x H x T)

Housing mounting : Direct DIN rail mounting

Connection type : Plug-in terminals

Protection class : IP20

Operating temperature : -20°C to +60°C

Storage temperature : -40°C to +70°C

Air humidity : <95% non-condensing
