Description
Description : Logic Gates QUAD 2-INPUT AND GATE
Pack of 57Pcs
Condition : New
Date Code : 1113

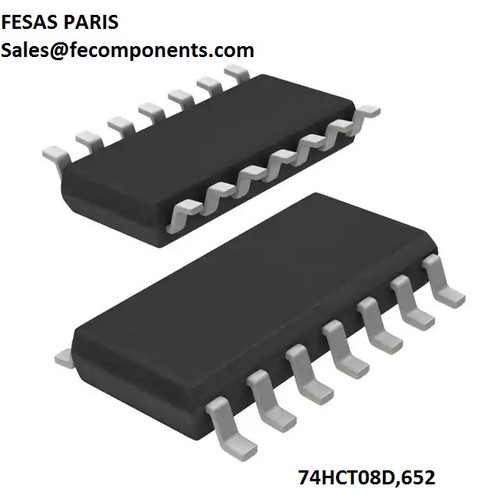

P/N : 74HCT08D,652
Manufacturer: NXP
Product Category: Logic Gates
Product: Single-Function Gate
Logic Function: AND
Logic Family: HCT
Number of Gates: 4 Gate
Number of Input Lines: 2 Input
Number of Output Lines: 1 Output
High Level Output Current: - 4 mA
Low Level Output Current: 4 mA
Propagation Delay Time: 11 ns
Supply Voltage - Max: 5.5 V
Supply Voltage - Min: 4.5 V
Minimum Operating Temperature: - 40 C
Maximum Operating Temperature: + 125 C
Mounting Style: SMD/SMT
Package/Case: SO-14
Packaging: Tube
Function: AND
Height: 1.45 mm
Length: 8.75 mm
Width: 4 mm
Brand: NXP
Logic Type: 2-Input AND
Operating Supply Voltage: 5 V
Product Type: Logic Gates
Factory Pack Quantity: 57
Subcategory: Logic ICs
